Suntree 32amp,500Vdc 3strings
Key Features:
-
✅ String Inputs: 3 PV string inputs, each protected by DC fuse (1100 V rating)
-
⚡ Output Protection: Single DC breaker/isolator rated 32 A (550 V or 1000 V versions available)
-
⚡ Surge Protection: Built-in DC SPD (500 V version) to protect against lightning and surge faults
-
⬆️ Voltage Rating: Suitable for systems up to 500 VDC (also available for 1000 VDC)
-
🛡️ Enclosure: UV-stabilized IP65 housing ideal for outdoor use
-
📐 Specs: Max input current per string: 15 A; max output switch current: 40–50 A; SPD rated to 20 kA/40 kA discharge capacity
Original price was: KSh 16,000.00.KSh 14,700.00Current price is: KSh 14,700.00.
Suntree 32amp,500Vdc 3strings
Original price was: KSh 16,000.00.KSh 14,700.00Current price is: KSh 14,700.00.

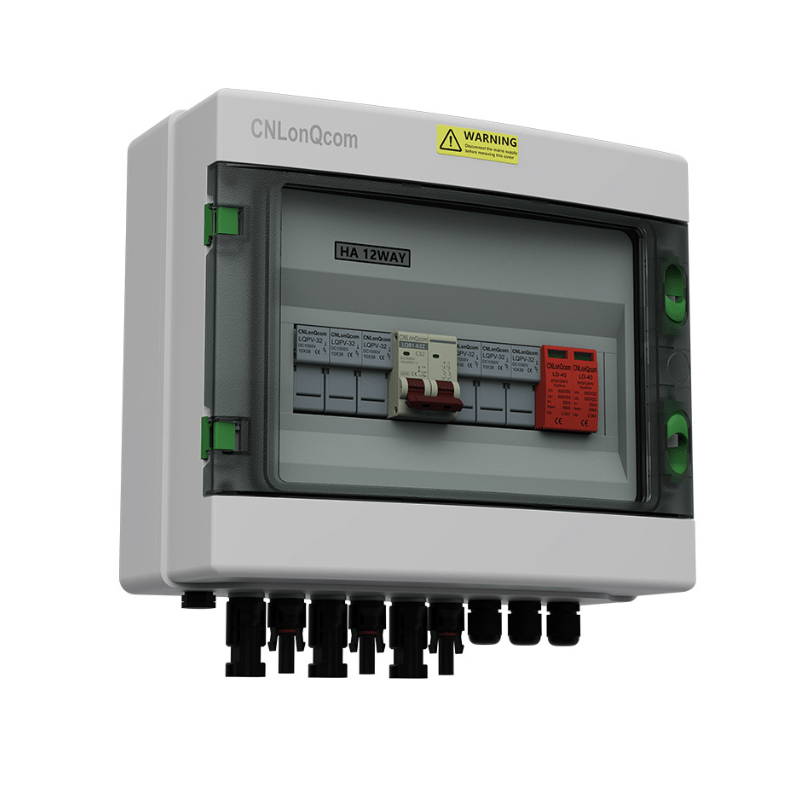

A compact, IP65-rated PV combiner box designed for three solar panel strings. It integrates DC fuses, a 32 A DC circuit breaker for output, and a surge protective device—all pre-wired and enclosed in a sturdy, weather-resistant housing—perfect for residential or small commercial installations.
| Feature | Details |
|---|---|
| Max Strings | 3 |
| Fuse Rating (string) | 1100 VDC, up to 15 A each |
| Output Breaker Rating | 32 A DC (versions up to 50 A available) |
| Surge Protection | SPD rated for 500 VDC, 20 kA/40 kA peak discharge |
| Enclosure Rating | IP65, UV-resistant, wall-mountable |
| Certifications | CE, TUV, CB compliant |
| Mounting | DIN-rail, pre-wired for quick installation |
