Suntree 100amps,1000Vdc 8Strings
Key Features:
-
Max Strings: 8 PV string inputs, each with independent DC . fuse protection (1100 VDC rating per channel)
-
Rated Output: Single 100 A DC breaker (or load-switch variant) sized for 1000 VDC operation
-
Surge Protection: Integrated Type‑II SPD rated to 1000 VDC with discharge capacity of up to 20 kA–40 kA
-
Enclosure: Industrial-grade metal or cold-rolled steel IP65 housing for outdoor installation; UV-resistant and weatherproof
-
Internal Layout: Factory-wired with plug-push fuses, DIN-rail mounting, and streamlined wiring setup for quick installation
-
Standards Compliant: CE, TUV, CB certified and designed per CGC/GF 037:2014 PV combiner specification
Original price was: KSh 42,000.00.KSh 39,900.00Current price is: KSh 39,900.00.
Suntree 100amps,1000Vdc 8Strings
Original price was: KSh 42,000.00.KSh 39,900.00Current price is: KSh 39,900.00.

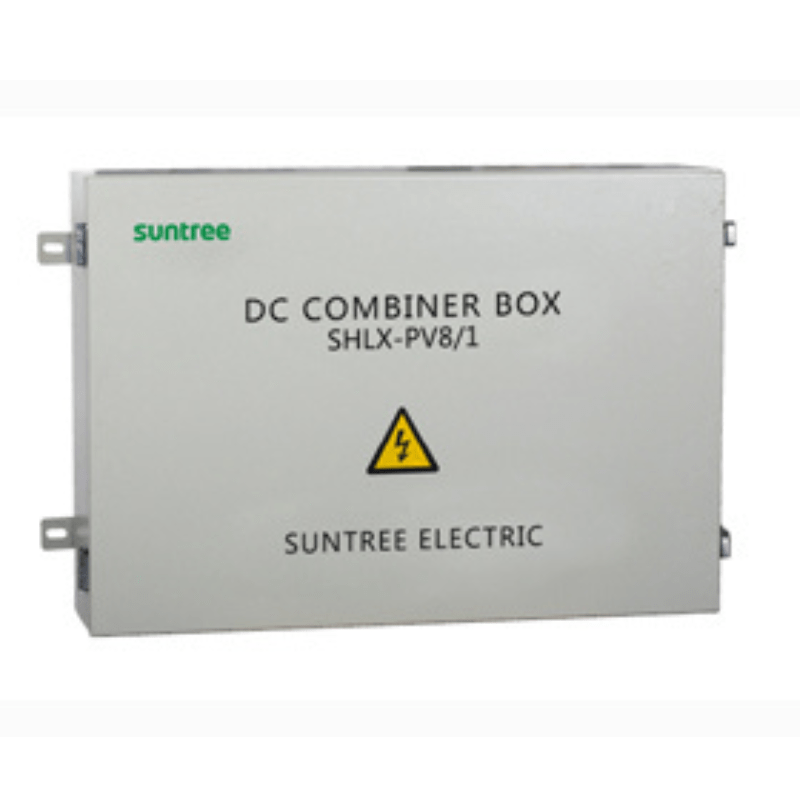

The Suntree SHLX‑PV8/1 is engineered for large-scale solar installations, capable of combining eight PV strings into a single 100 A DC output feed rated for 1000 VDC operation. Built in an IP65-rated enclosure with factory-installed protection—fuses, DC breaker, and surge protection—this combiner box simplifies system architecture while enhancing safety and reliability.
Summary
| Parameter | Specification |
|---|---|
| PV Strings | 8 per combiner |
| Voltage Rating | 1000 VDC maximum |
| Output Capability | 100 A DC breaker or isolator |
| Surge Protection | Type II DC SPD, 20–40 kA discharge |
| Fuse Input Rating | 1100 VDC per string |
| Enclosure Rating | IP65, steel or PVC housing |
| Mounting | Wall-mounted, pre-wired DIN rail setup |
| Compliance Standards | CE, TUV, CB; CGC/GF 037 certified |
