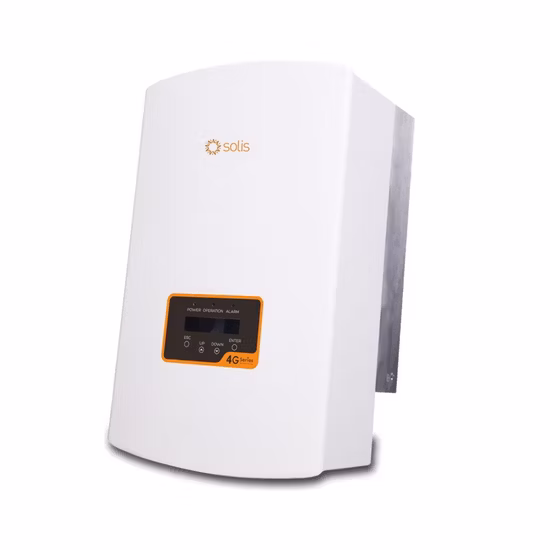

TBB PV INVERTER SOLIS 3P 15K-4G,15kw three phase
Key Specifications
| Feature | Details |
|---|---|
| AC Output Power | 15 kW continuous (16.5 kVA peak) |
| DC Input Max Power | 18 kW |
| Max DC Voltage | 1000 V, MPPT range 160–850 V |
| MPPT Configuration | 2 trackers, up to 4 strings (22 A each) |
| Efficiency | 98.7 % peak, 98.1 % EU, MPPT > 99.5 % |
| Grid Voltage/Freq | 3/N/PE, 380 V (range 47–52 Hz) |
| Power Factor/THDi | > 0.99 (0.8 lead/lag), THDi < 1.5 % |
| Dimensions & Weight | 310 × 563 × 219 mm, 18.9 kg |
| Ingress Rating | IP65 (outdoor-grade) |
| Operating Temp | −25 °C to +60 °C |
| Communication | RS485 standard; Wi‑Fi/GPRS optional; built-in LCD |
| Safety Protections | Reverse-polarity, over/under voltage, overcurrent, surge, anti-islanding, residual current, high temperature – includes integrated DC switch |
| Standards & Certifications | IEC 62109‑1/-2, VDE, G98/G99, AS/NZS, EN 50549, UL, CE/TÜV/CB |
Original price was: KSh 400,000.00.KSh 371,000.00Current price is: KSh 371,000.00.
Only18 item (s) left in stock!
TBB PV INVERTER SOLIS 3P 15K-4G,15kw three phase
Original price was: KSh 400,000.00.KSh 371,000.00Current price is: KSh 371,000.00.
Only18 item (s) left in stock!
The Solis 3P15K‑4G is a high-performance, transformerless three-phase string inverter designed for residential, commercial, and light-industrial solar installations. With dual MPPT trackers, wide voltage range, and smart grid features—including integrated Export Power Manager—this inverter delivers efficient energy conversion and robust safety for modern solar systems.
