Product Description

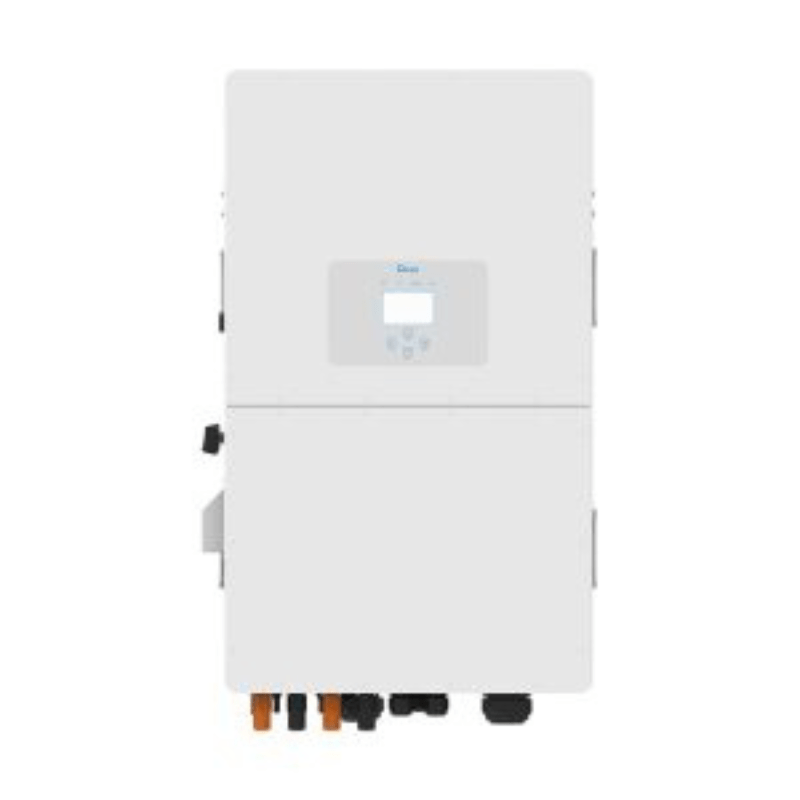

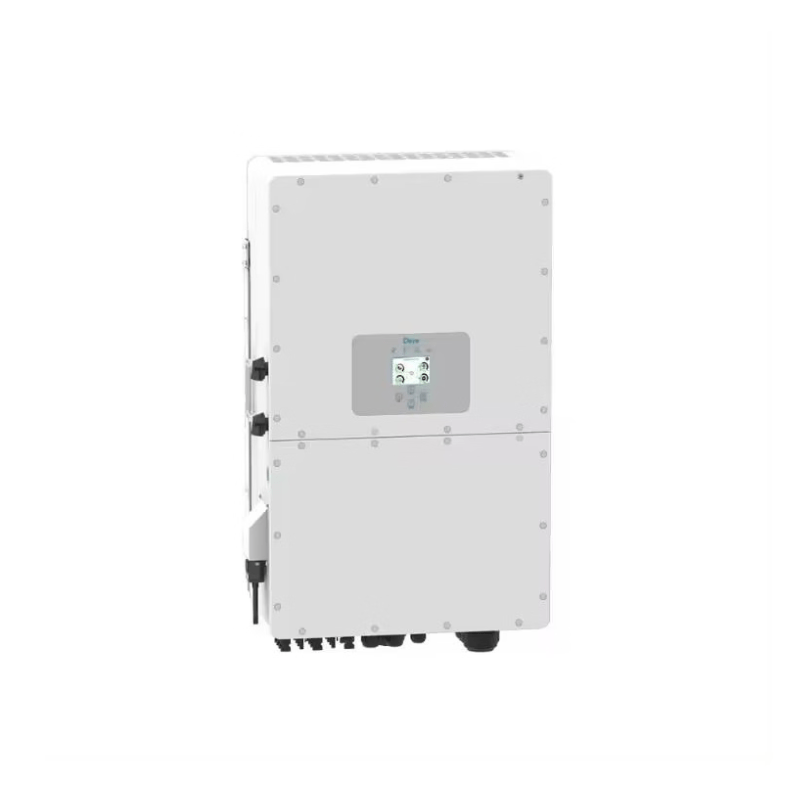

The SUN‑50K‑SG01HP3‑EU‑BM4 is Deye’s flagship 50 kW three-phase high-voltage hybrid inverter. With support for 160–800 V battery voltage and up to 65 kW PV input, it delivers flexible solar-to-storage energy management with smart backup, high throughput charging, and scalable deployment capabilities tailored for Kenya’s grid environment.

⚙️ Key Features

🔋 Battery & Charge

• Compatible with lithium-ion batteries in the range of 160–800 V DC, including smart BMS interaction.

• Dual battery ports, each rated at 50 A charge/discharge, totaling 100 A maximum battery throughput.

☀️ PV Input & MPPT

• Max DC input power of up to 65 kW, with four MPPT channels (2+2+2+2 string configuration).

• DC voltage up to 1,000 V, with MPPT range of 150–850 V, startup voltage at 180 V, and full-load range 450–850 V.

⚡ AC Output & Performance

• Rated AC output 50 kW (UPS mode up to 55 kW apparent) with continuous current ~75.8 A per phase; max ~83.3 A.

• AC passthrough capacity (grid to load): up to 150–200 A continuous

• Peak (off-grid) power output: 1.5× rated power sustained for ~10 seconds.

• Supports 100% unbalanced phase loading, with full capacity available per phase.

🧠 Efficiency & Scalability

• Max conversion efficiency of 97.6%, Euro efficiency ~97%; MPPT efficiency up to 99.9%.

• Parallel support for up to 10 units (some regions claim 500 kW systems via multiples) for scalable hybrid systems.

🌐 Communications & Control

• Connectivity via RS485 and CAN, with optional Wi‑Fi, GPRS/4G, Bluetooth, or LAN for monitoring and remote firmware updates.

• Configurable six charge/discharge time periods, generator integration, AC coupling, and smart load control features.
